05704-A-0133
05704-A-0133

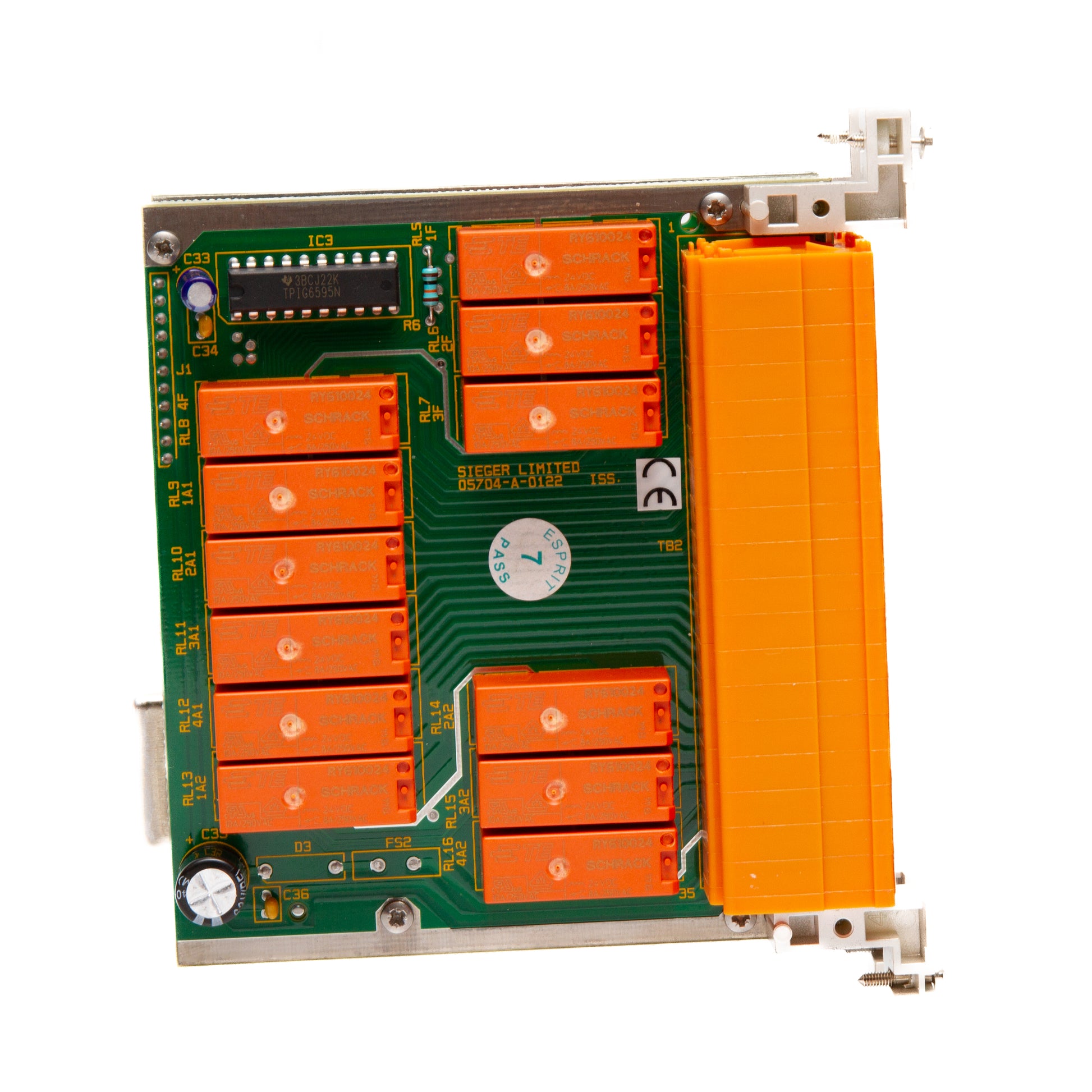

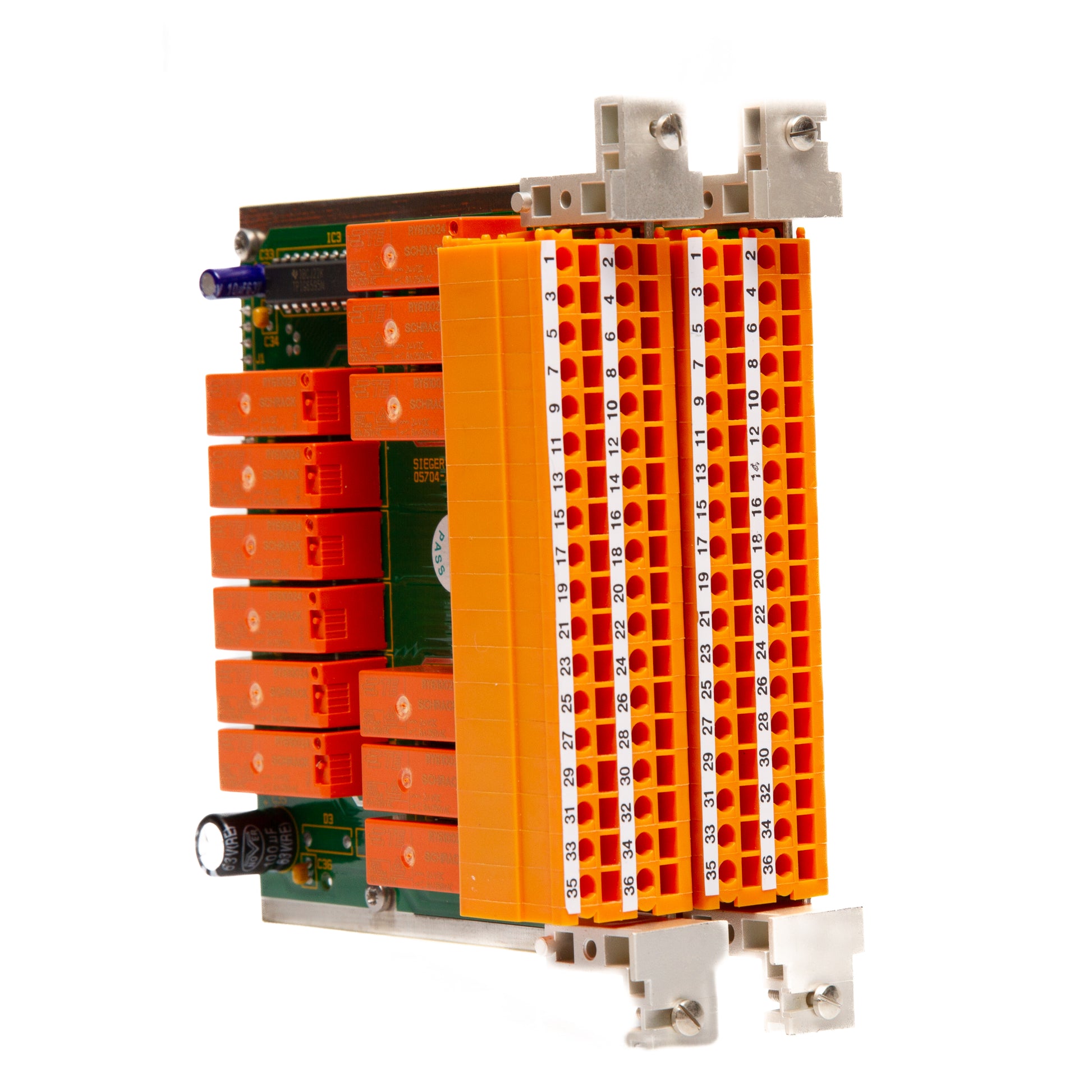

5704F Relay Interface Assembly
Specifications
Specifications
'Input: Supports catalytic, IR, 4–20 mA gas detectors; flame, smoke, heat detectors; manual call points
Outputs: 4–20 mA, RS-485 ModBus, relays (Alarm, Fault, etc.)
Alarm Logic: Zoned, master, voted, time-delayed Power Supply: 18–32 VDC
Operating Temp: –5 °C to +55 °C
Feature
Feature
-Modular design supports gas and fire control cards (e.g., 5701, 5704, 5704F) in one system
-Flexible input compatibility with flammable/toxic gas detectors, flame/smoke/heat detectors, and manual call points
-Advanced alarm logic, including zoned, master, voted, time-delayed, and rate-of-rise alarms
-Communication outputs: RS-485 ModBus and 4–20 mA analog output for easy system integration
-Event logging & FirePic™ with timestamped records for incident analysis
Certifications
Certifications
FM, ATEX, CE marked, and SIL 2 compliant
