FS20X-212-21-2

FS20X-212-21-2

$3,857.30 USD
$4,538.00 USD $3,857.30 USD
Sale Sold out
Shipping calculated at checkout.

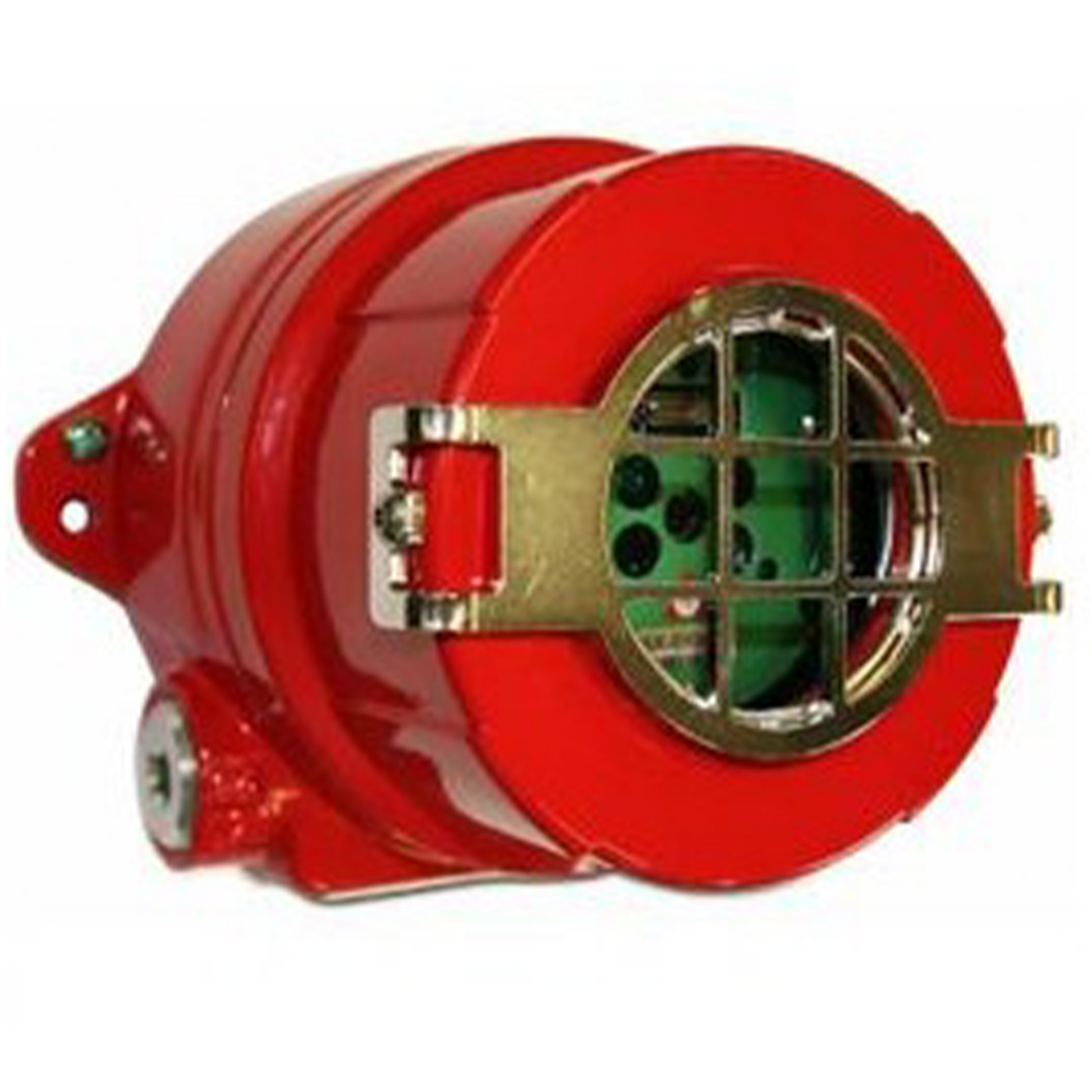

FS20X-211-21-2 DUAL IR/UV FLAME DETECTOR Copper-Free Aluminum Encl. with (2) ¾” NPT entries, FM, cFM for Class I, Division 1, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class III with FSX-A014 Optional HART Module for FS20X Detectors Factory installed.

Specifications

-Field of view: 90° full 100% core of vision, ± 45° from on axis
-Operating voltage: 24 VDC nominal (18-32 VDC) - regulated
-Sensitivity: Very high, high, medium and low - switch selectable

Feature

-Patented WideBand IR™ Infrared combined with Ultraviolet
-Detection range greater than 60 m (200 feet) to 0.1 m² (1 sq. ft.) heptane fire
-Patented Electronic Frequency Analysis
-Dual microprocessors for reliable performance
-Automatic Optical Path and Electronic self-test
-Built-in RS-485 ModBus communication

Certifications

FM, cFM, ATEX, IECEx, En54-10 and SIL 2 complaint.
