FS20X-212-23-3

FS20X-212-23-3

$3,762.95 USD
$4,427.00 USD $3,762.95 USD
Sale Sold out
Shipping calculated at checkout.

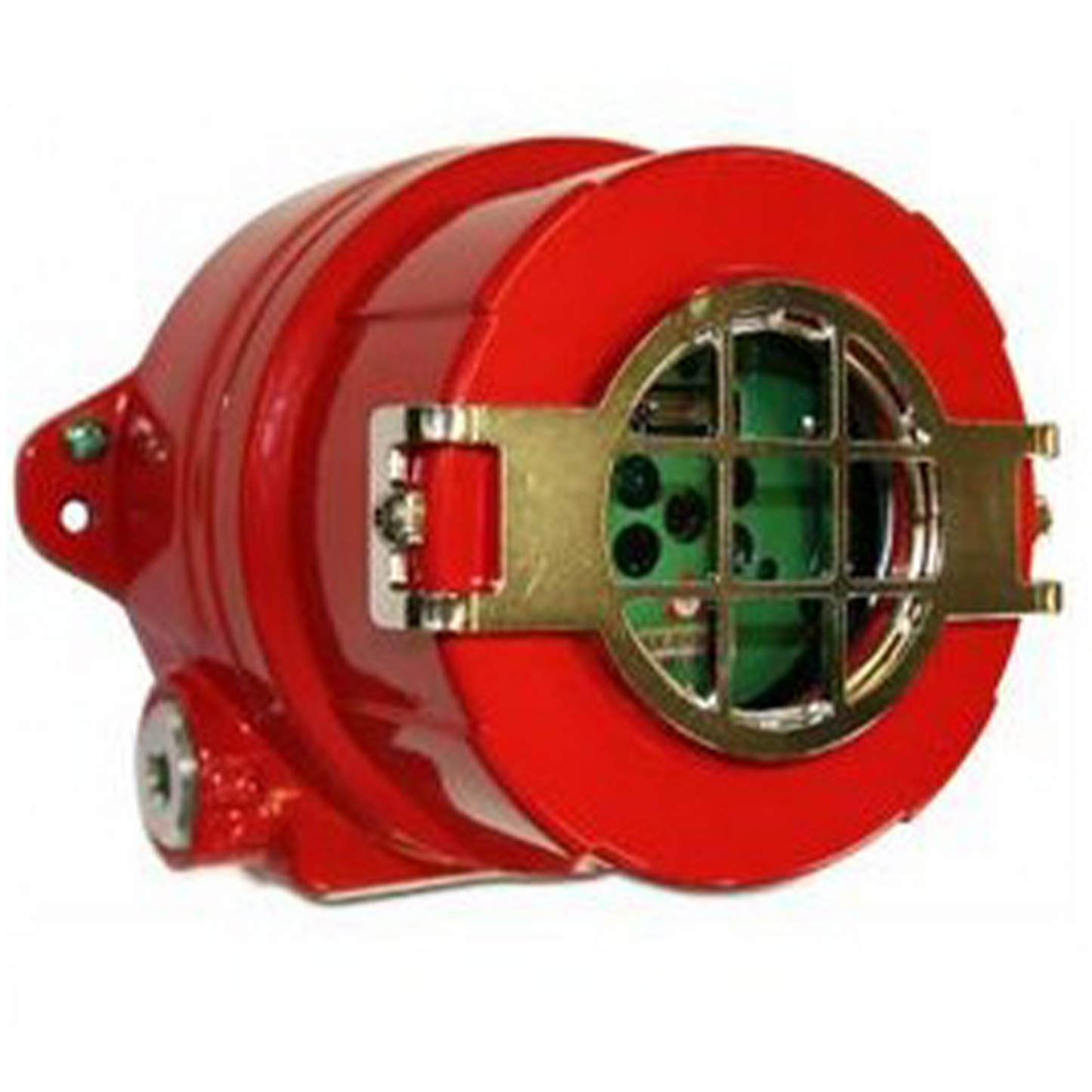

FS20X-211-23-3 DUAL IR/UV FLAME DETECTOR Copper-Free Aluminum Encl. with (2) M25 entries, FM, cFM, ATEX, IECEx for Class I, Zone 1 with FSX-A014 Optional HART Module for FS20X Detectors Factory installed

Specifications

-Field of view: 90° full 100% core of vision, ± 45° from on axis
-Operating voltage: 24 VDC nominal (18-32 VDC) - regulated
-Sensitivity: Very high, high, medium and low - switch selectable

Feature

-Patented WideBand IR™ Infrared combined with Ultraviolet
-Detection range greater than 60 m (200 feet) to 0.1 m² (1 sq. ft.) heptane fire
-Patented Electronic Frequency Analysis
-Dual microprocessors for reliable performance
-Automatic Optical Path and Electronic self-test
-Built-in RS-485 ModBus communication

Certifications

-FM
-cFM
-ATEX
-IECEx
-En54-10
-SIL 2 complaint
View full details
