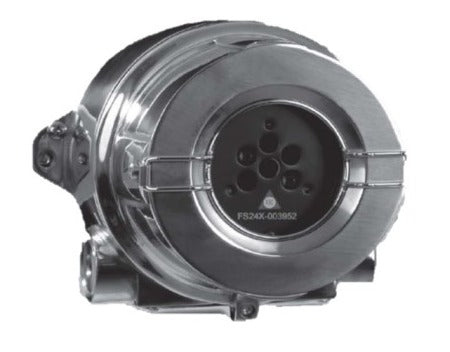

FS24X-912-24-5

Sensitivity：
Very high (60m), high (45m), medium (30m) and low (15m) - switch selectable

Response Time：
3-5 Seconds to 0.1 m2 (1 sq. ft.) n-Heptane fire at 30 m (100 ft.)
3-10 Seconds to 0.1 m2 (1 sq. ft.) n-Heptane fire at 60 m (200 ft.)

Spectral Sensitivity：
Visible: 400 – 700 nanometres
Near Band IR: 0.7 – 1.1 microns
Wide Band IR: 1.1 – 3.0 microns
Wide Band IR: 3.0 – 5.0 microns
Temperature Range:
Operating: 110°
Field of View FS24X: -40ºC to +85ºC -(40ºF to +185ºF); 90°
Field of View FS24X: -60°C to +85°C (-76°F to +185°F)
Storage: -55ºC to +110ºC (-67ºF to +230ºF)

Patented WideBand IR™ & Electronic Frequency Analysis™*
– Detects both hydrocarbon and non-hydrocarbon fires under all conditions

Dual microprocessors
– Ensure fast response, system reliability, and fail-safe operation

FirePic™ & Event Log with timestamps
– Enable real-time monitoring and detailed post-event analysis

Wide 110° field-of-view
– Covers larger areas with fewer detectors

Flexible outputs: RS-485 ModBus & 4-20 mA
– Easy integration with various control systems

-FM
-ATEX
-IECEx
-INMETRO
-CU-TR
-SIL Rating
-EN54-10
